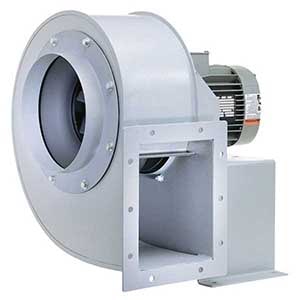

Direct drive, non-overloading ‘TEK‘ impeller
Highly efficient airfoil (BCA) design
Epoxy coated steel housing
Flanged and drilled outlet, ABS inlet cone
Rugged GRP (polyamide) impeller
Cast aluminum impeller hub w/bushing
Single or three phase TEFC motors, also available without motor
CW rotation rotatable to 5 positions
Capacities to 4,500 cfm
Forward Curved Blowers
Forward curved, steel wheel
Designed for highly efficient performance
Rugged cast aluminum housing, heavy duty steel base
AMCA Type C spark resistant construction
CW rotation; rotatable to 4 positions
Suitable for 0 to 150 F
Circular inlet and outlet collars
Single or three phase TEFC motors
Capacities to 1,550 cfm

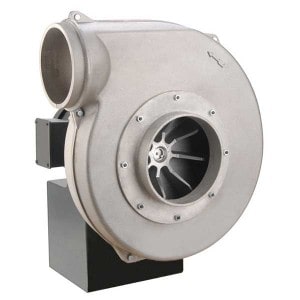

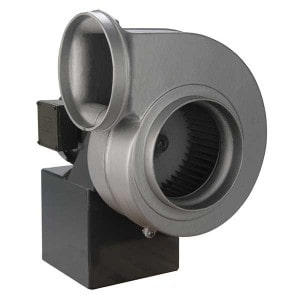

Material Handling Blowers
Cast aluminum radial blade wheel
Designed for highly efficient performance
AMCA Type B spark resistant construction
Rugged cast aluminum housing
Circular inlet and outlet collars
Single or three phase TEFC motors
CW or CCW rotation available.
Discharge rotatable to 4 positions
Suitable for 0 to 150 F
Static pressures to 11″ w.g.
Capacities to 3,410 cfm

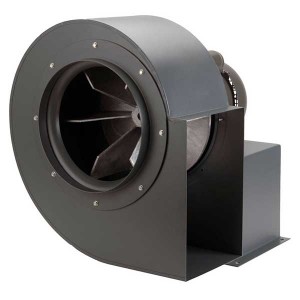

Radial Centrifugal Blowers
Welded 16-gauge steel housings.
Cast aluminum wheels.
Self cleaning impellers.
Baked polyester powder coat finish
Choice of motors.
Explosion proof motors available
Standard discharge: CW bottom horizontal; rotatable to 8 positions
Field adjustable rotation and discharge
Capacities to 3,307 cfm

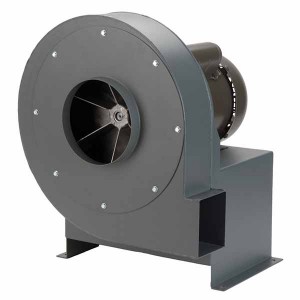

Radial Blade Pressure Blowers
Welded 16-gauge steel housing.
Cast aluminum impeller
Self cleaning wheel designed for efficient operation.
Baked polyester powder coat finish
Wide choice of Motors
Explosion proof motors available.
Standard discharge: CW bottom horizontal; rotatable to 8 positions
Field adjustable rotation and discharge
Capacities to 2,100 cfm

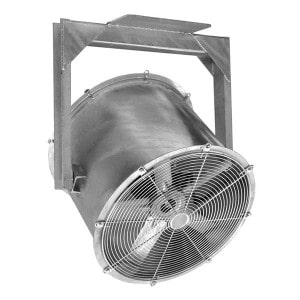

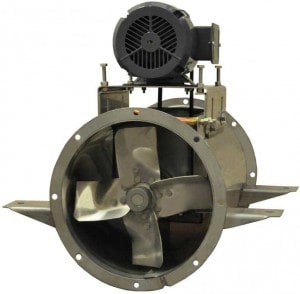

316L Stainless Steel Construction
316L Stainless Steel Impeller
High Temp Construction to 375 F
Continuously welded construction
Horizontal Mounting Brackets
Severe Duty Motor.
Well suited for Foundries, Extrustion Cooling, Rapid Cooling of Production Parts.
Hot Dip Galvanized Fans
Continuously welded construction
Hot dip galvanized coating
ELTA cast aluminum impeller
Swivel yoke
OSHA style front and rear guards
TEFC motor with arctic duty grease bearings.
Great for Marine and most corrosive wet applications.
Low Silhouette Roof Fans
Small High Efficiency, Compact Roof Mounted Roof Mounted Fans for small building or utility room exhaust, low maintenance and compact, available with UL 705 Rating, good up to 3,100 CFM.

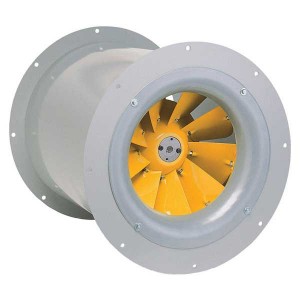

Mixed Flow In-line Fans
Exceptionally quiet and efficient
High capacity mixed flow impeller
TEFC industrial duty motor
Baked polyester powder coat finish
Custom mounting arrangements available.
NEMA 4 junction box, pre-wired and mounted on fan
Diameters range from 12″ to 24″
Capacities to 5,340 cfm

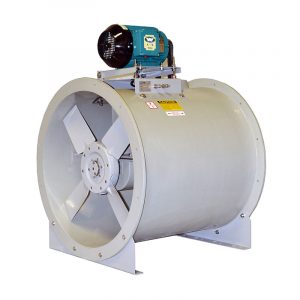

Fiberglass Axial Fans
FRP housing and airstream parts
Impeller in FRP, SS, epoxy painted aluminum, or other material options
Steel or stainless steel parts outside airstream
Statically and dynamically balanced
Stainless steel shaft and hardware
Pillow block bearings
Extended lube lines
Flanged inlet and outlet
Neoprene seals
100 C / 212 F max. operating temperature
Sizes range from 18” to 60”

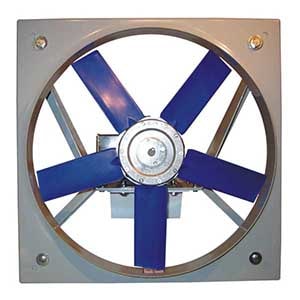

Panel Fans
Spark resistant, cast aluminum airfoil axial impeller
Superior performance and sound characteristics
Heavy gauge steel
Baked polyester powder coat finish
TEFC industrial duty motor
GRP (polypropylene) impeller available
Aluminum construction available
Sizes range from 12″ to 36″
Capacities to 23,000 cfm from stock components
Custom designs available

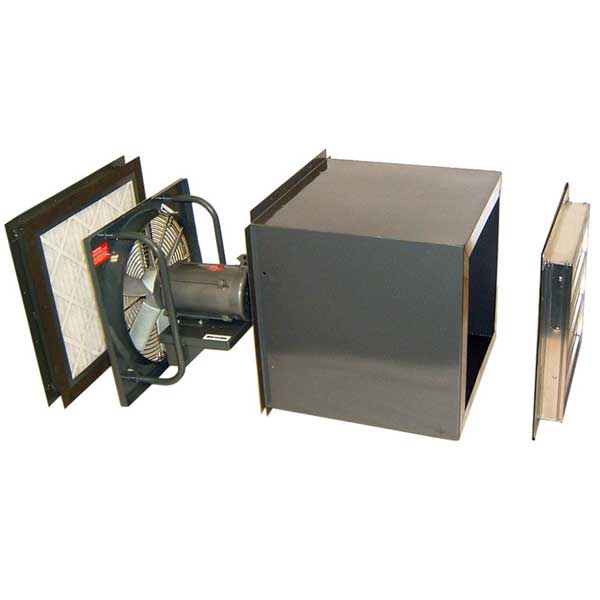

Wall Mounted Filtered Fans
Spark resistant, cast aluminum airfoil axial impeller
Supply or exhaust configurations
OSHA style impeller side guard
Baked polyester powder coat finish
Removable filter box section
TEFC industrial duty motor
Optional explosion proof motor
Disposable 2″ filters are high capacity, pleated type that meet MERV 8 rating
Aluminum backdraft damper
