The AQC enclosed shaker dust collector is designed for various air volume applications and solid particles filtration. The Shaker / Collector is ideal for small to medium size shops and industries, training facilities or vocational schools.

The narrow footprint of the collector means that it may be installed inside or outside of the facility without losing valuable floor space. The efficient filters allow clean air to be recycled back into the premises for maximum energy savings.

The manual or motorized cleaning systems dislodge particles from the filter and are then stored in a variety of bins, drawers or drums.

Safety features such as explosion relief vents, back draft dampers or spark detection and extinguishing systems for explosive or combustible dust are available. All our shaker dust collectors meet NFPA, local building codes and specifications, once again, our engineering group will guide you through the process of designing and specifying an appropriate dust collection system that suits the needs of your facility.

When welding or grinding from a fixed workstation, source capture is necessary. The AQC Dual Arm Fume Extractor is easily moved to various locations within the manufacturing facility with the help of swivel casters and push handles. The cartridge cleaning is simple; operators need only push the palm button to discharge the compressed air from the integrated air tank. The AQC portable unit has large dust trays at the bottom and is emptied when needed. The backward inclined fans deliver great air volume while the foam insulated steel cabin runs quietly. The AQC portable units can be equipped with one or two fume arms. The unit may also be connected to a ductwork arrangement for remote source capture. The portable filtration unit is designed to serve single or double workstations quickly and efficiently with no requirement for duct installation or major structural modifications. The AQC portable unit is ready for use out of the box and is shipped fully assembled. It only requires the mounting of the fume arm on the air inlet cabinet. The high efficiency cartridges allow the recirculation of clean air back into the facility. This unit has outstanding features such as spark resistant primary filter, high efficiency cartridges, carbon final filter, self-cleaning by air pulse with push button, starter with overload protection, and castors with foot brakes. This system operates on high voltage only.

When welding or grinding away from a fixed workstation, source capture is necessary. Unit is easily moveable withing the facility with the use of the provided swivel casters and push handles. Cartridge cleaning and maintenance is simple, operator need only push the palm button to discharge the compressed air from the integrated air tank. This unit has large dust trays at the bottom and is only emptied when needed. The backward inclined blowers included deliver a high capacity of air volume and are quiet and very efficient. The portable unit can be equipped with a fume arm. This filtration unit may also be connected to a ductwork arrangement for remote source capture.

The portable filtration unit is a “turn – key’ design with little or no assembly required. The high efficiency cartridges allow the recirculation of clean air back into the facility. This unit has outstanding features such as spark resistant primary filter, high efficiency cartridges, carbon final filter, self-cleaning by air pulse with push button, motor starter with overload protection, and casters with locking foot brakes.

The vertical arrangement of the cartridges makes for a more efficient cleaning of the filters when large particles are filtered. The Vertical Cartridge is an up-flow enclosed type dust collector. These dust collectors are the ideal for medium concentrations of dust and can be used with different dusts such as welding smoke, metal sanding, grinding or buffing, plasma, laser downdraft cutting tables, sandblast rooms operation, light to medium sized dry powders, food and pharmaceutical plants or plastic and composites fabricating shops.

The design of a horizontal cartridge dust collector is unique and highly advanced. The modular down flow cartridge collectors are specially designed for welding fumes, sanding or buffing applications, sandblasting or light particle filtration. The highly efficient filter cartridges allow recirculation of the clean air back into the facility resulting in energy savings. When solid particles enter the collector at high velocity, the top row of cartridges which is equipped with a series of deflectors protects the cartridges. This also ensures that the upper portion of the cartridge does not get clogged up. In addition, the unique design of cartridges are made to sustain 20% more weight than the actual stress of a clogged-up cartridges. This allows permanent and perfect cartridge alignment without yokes sagging or cracking. Pulse cleaning systems are available with timers or pressure differential controllers.

Dust storage options vary from low profile drawers to high-capacity drums and containers. Safety features such as explosion venting doors, blow back, abort dampers, spark detection systems are available when the collector is designed to be used with reactive material. All our horizontal cartridge dust collectors respect NFPA specifications, once again, our team will happily guide you through all current codes and standards to assure the safety of your dust collector.

AQC cyclone dust collectors use centrifugal energy to separate large and medium size particles from the air. The spiraling effect brings those particles towards the bottom of the cyclone and into a dust storage system. Clean air is then drawn upward into the inner cylinder to a blower and discharged into the atmosphere or into an after-filter system for additional filtration efficiency. Clean air can then be recycled back into the facility for maximum energy savings. The narrow footprint of the cyclone dust collector allows interior or exterior installation without losing valuable floor space.

The AQC cyclone dust collectors are an enclosed type of dust collectors that can be used with various dusts such as wood, metal, composites, chemicals, agricultural, food, beverage or pharmaceutical processes. It is strongly advised not to mix wood and metal dust applications or any other different dust in the cyclone dust collector. Not following these precautions could create a fire or an explosion. All the AQC horizontal cartridge dust collectors are designed and built to meet NFPA and local code regulations.

FanAir Past Project Gallery

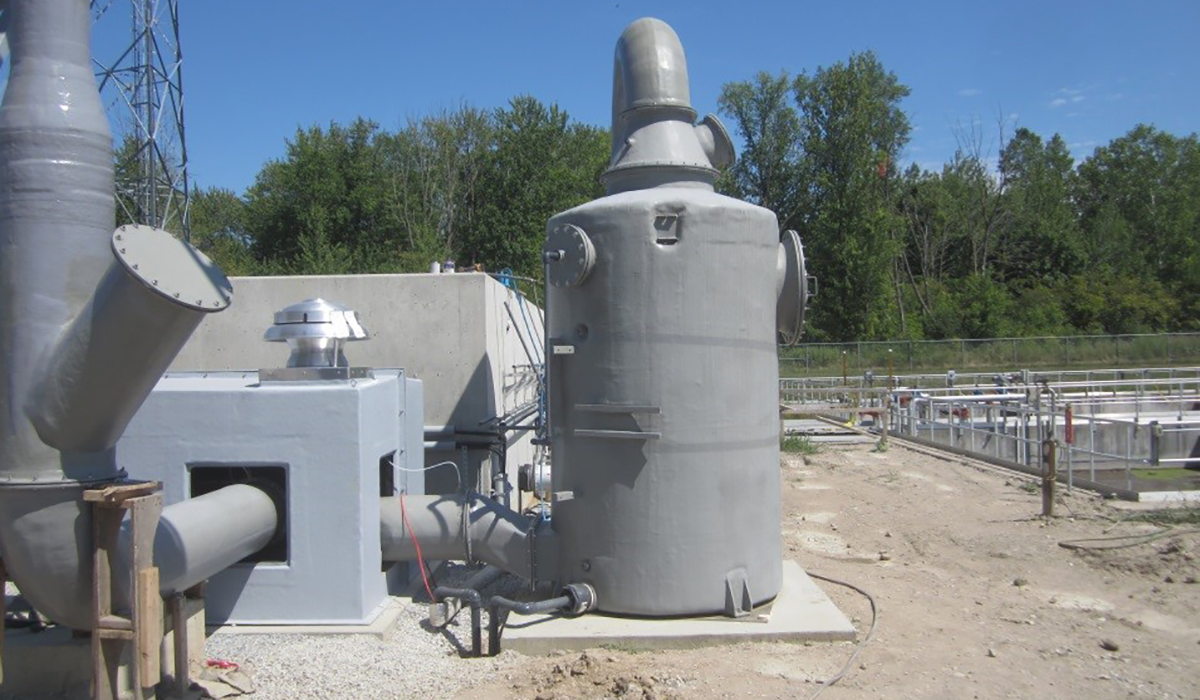

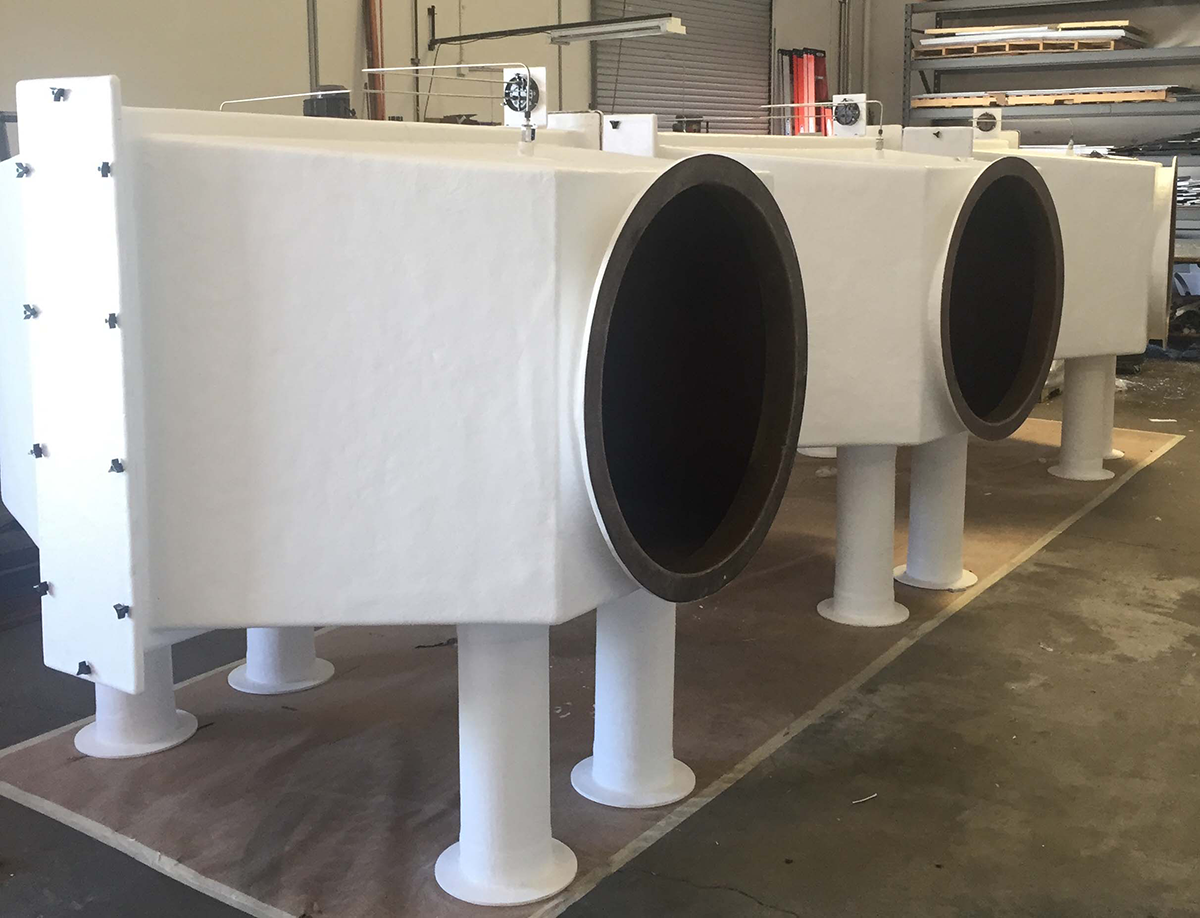

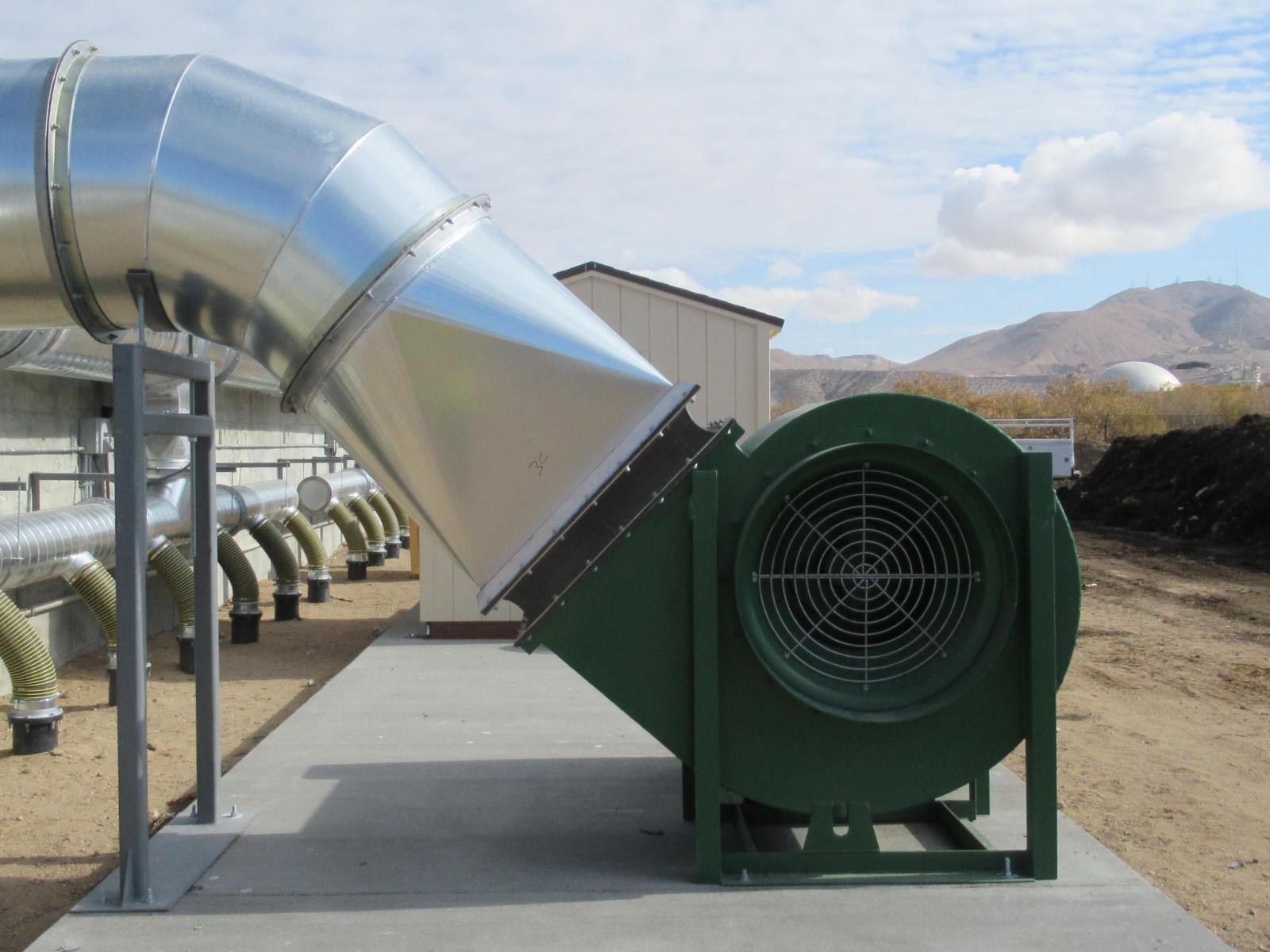

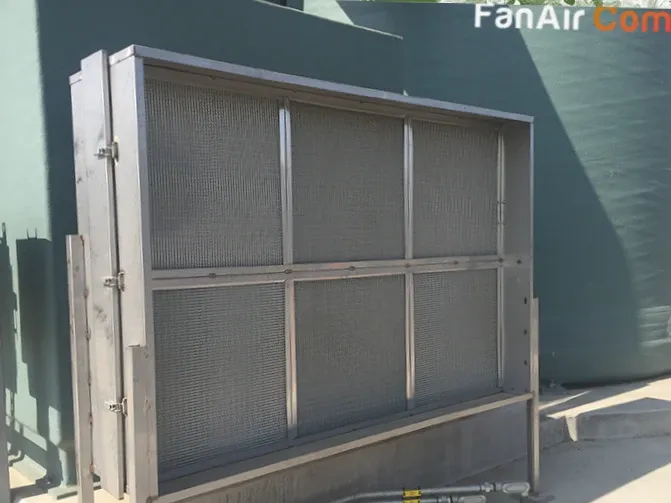

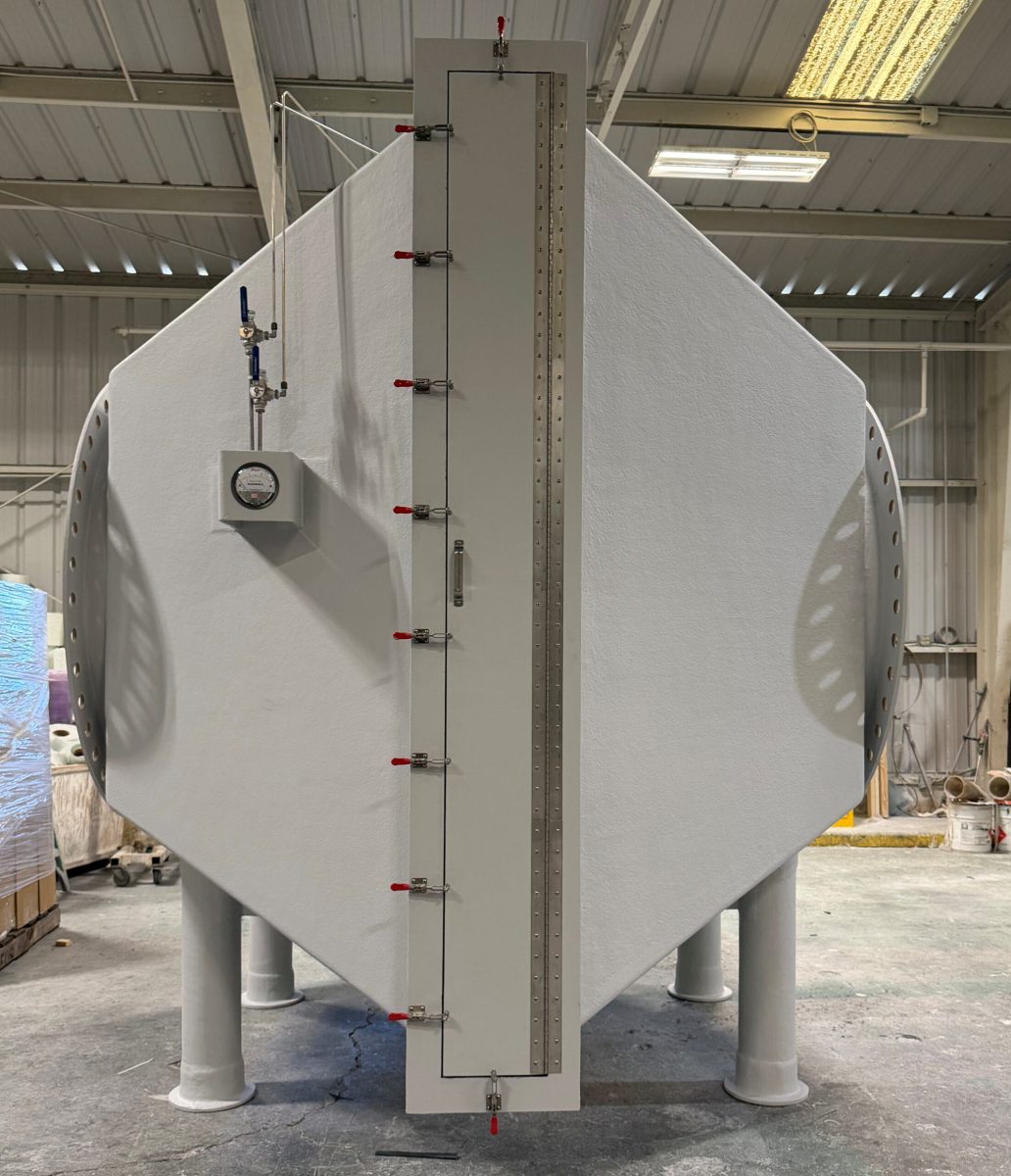

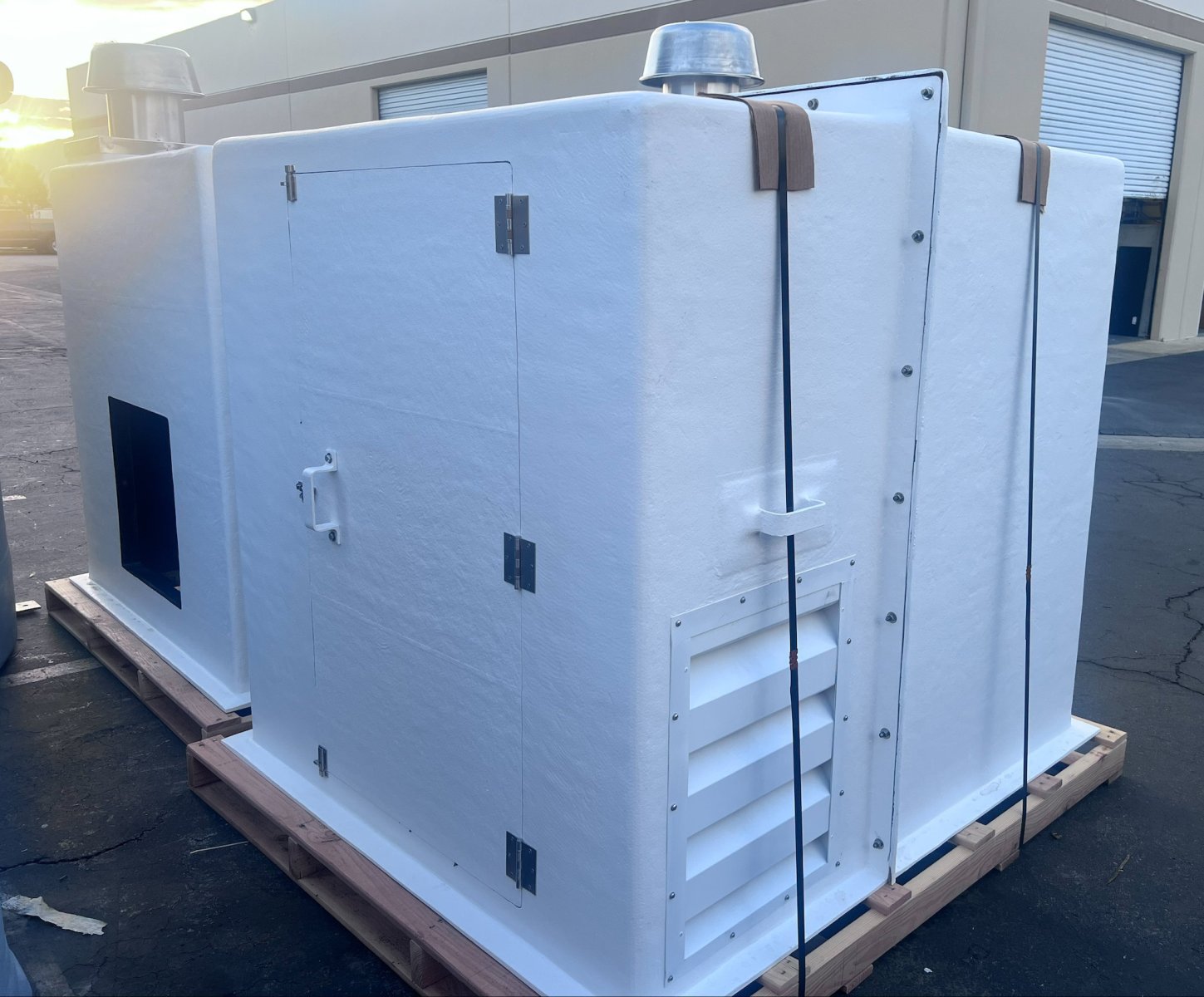

Project Photos: Industrial Fans and Blowers, Acoustic Sound Enclosures, Air Filtration, Grease Traps & Mist Eliminators, Fiberglass Ductwork.
