Custom Industrial Axial Fans
Custom Axial and Inline Fans

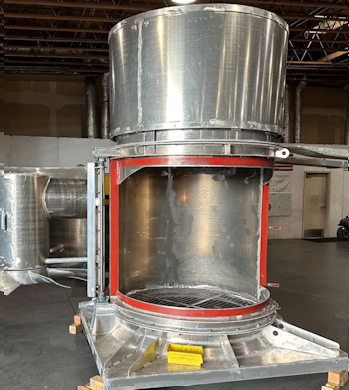

Swingout Design Fans enable routine fan cleaning and maintenance operations to be performed without removing the fan from the system. By providing you with quick and easy access to all internal parts, including motor, shaft, wheel, and bearings, maintenance is Quick action, fast release clamp-lock latches. Tight manufacturing tolerances ensure maximum flowpath sealing and efficiency. Full 180° swingout provides plenty of room for all maintenance and service tasks. Greatly simplified and costly downtime is minimized. Most importantly, because routine cleaning, inspection and service operations are so easily accomplished, it becomes simpler than ever to keep your fan clean and properly maintained.

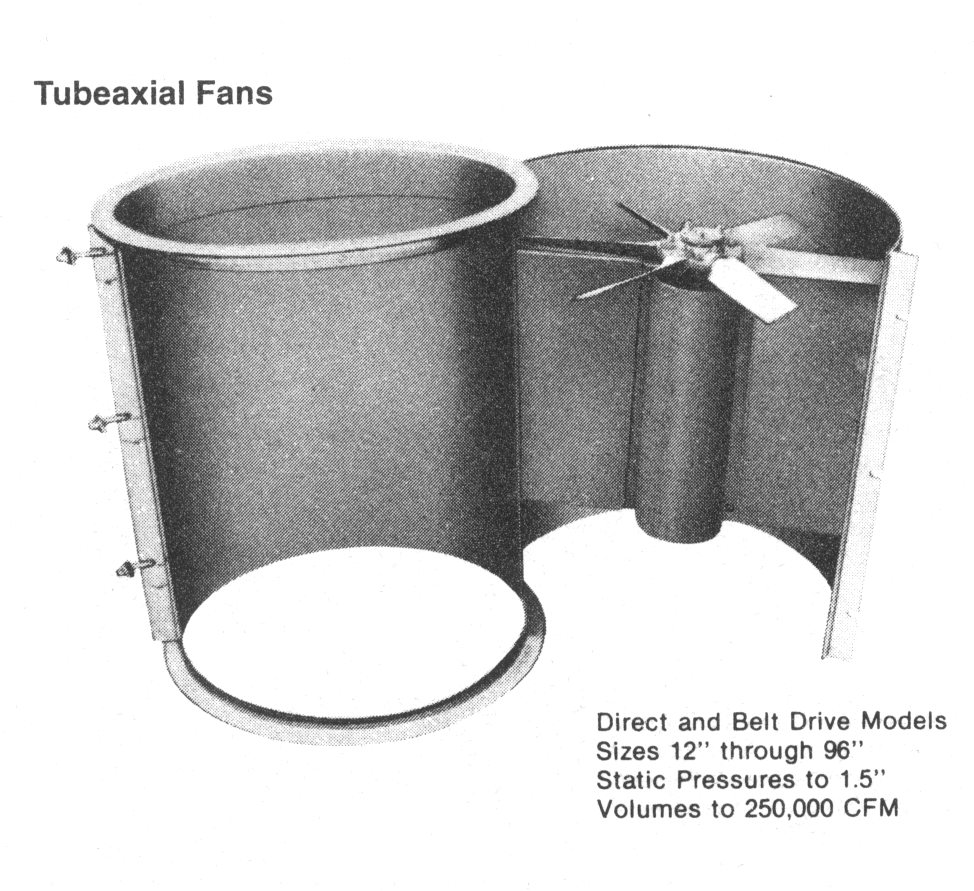

Tubeaxial Fan - Swing Out
Single Stage High Pressure Blowers for Combustion, Heat Exchangers, Aeration Blowers, Pneumatic Conveying Blowers, Gas Burners, Landfill Gas Recovery Blowers, Carbon Adsorption Blowers, Fluidised bed dryer Blowers, Air Lift Systems, Venturi Scrubber Blowers, Selective Catalytic Reduction Blowers, Blown Film Air Ring Blowers, and Blowers for Dry Off Systems.

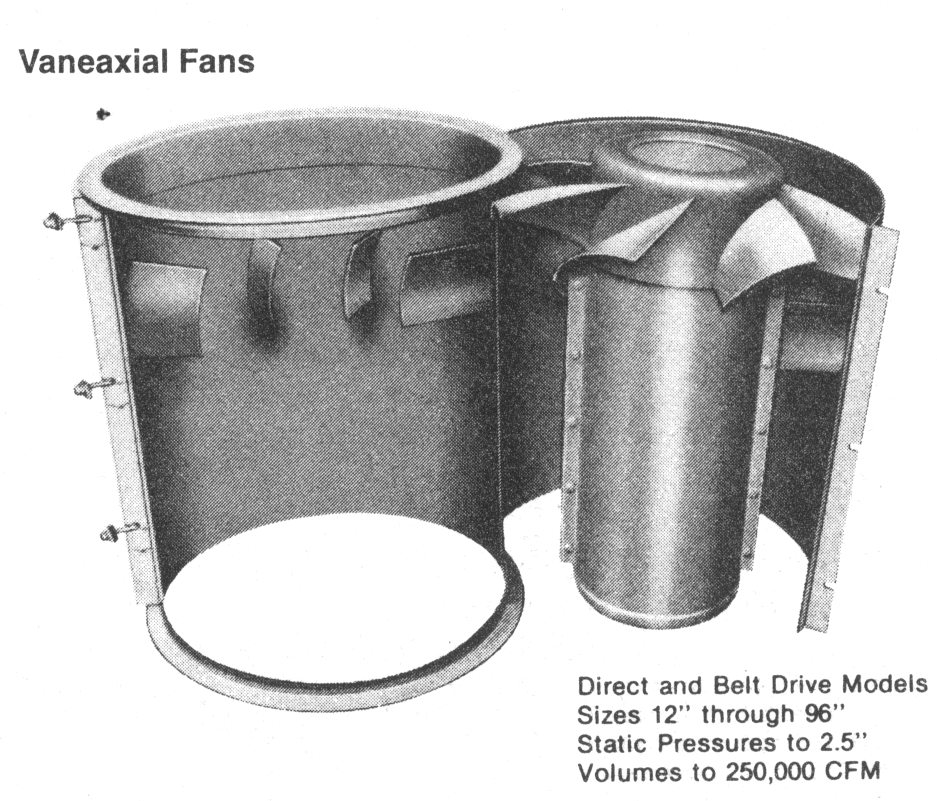

Vaneaxial Fan - Swing Out
Swingout design fans enable routine cleaning and maintenance· operations to be performed without removing the fan from the system. This is accomplished by hinging the casing and allowing the fan internals to "swingout" with the hinged section while the casing remained attached to the ductwork. By providing quick and easy access to all internal pares, including the motor, shaft, wheel, and bearings, maintenance is greatly simplified and costly downtime is minimized.

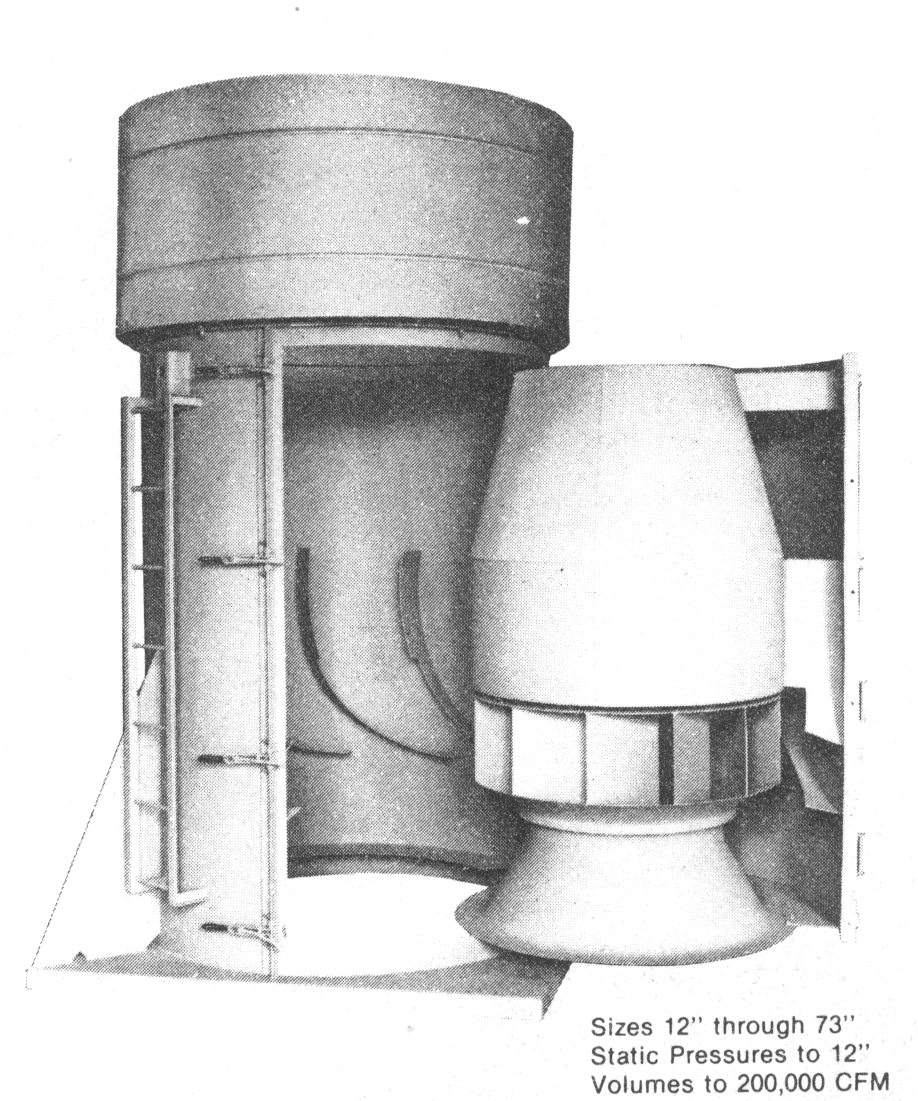

Tubular Centrifugal Blower - Swing Out
FULL ACCESS DESIGN Quick access to the fan interior is accomplished by a hinged outer section. This section opens 180° to provide plenty of room and freedom for most types of maintenance or service tasks. This feature will save many hours of maintenance costs as the fan need not be removed from the system to keep it clean and operating efficiently.
Custom Axial Fans, Vaneaxial, Tubeaxial, and Tubular Centrufugal Blowers.
Design Options for Construction:
Mild steel housings with aluminum propellers.
Hot Dip Galvanized Construction.
AMCA ‘B’ and ‘C’ Construction, Mild steel housing with an aluminum prop with an aluminum striker plate.
All Aluminum Construction (AMCA ‘A’) — Aluminum housing with standard aluminum prop. Housing flanges are welded solid.
Stainless Steel Air Stream, 304 Stainless Steel housing with standard aluminum prop. Housing flanges are welded solid. Hardware is 304 Stainless Steel.
Belt Guard — Stainless, or coated steel OSHA belt guard with 1/2″ expanded metal safety guard enclosing motor sheave and belts. Not needed when motor cover is ordered.
Hinged Access Door — Allows limited inspection and cleaning of fan interior.
Flanged Inlet, Drilled with EPDM Gaskets.
Flanged Discharge, Drilled with EPDM Gasket.
Companion Flanges — Angle iron ring with matching punched holes used to align duct work with
fan inlet and outlet flanges. Available in standard sizes only.
Inlet Vane Control Damper — For volume reduction with corresponding Horsepower savings – Maximum velocity. 3,000 FPM, Maximum pressure at block-off 7″ SP, Maximum temperature 250 degrees F. Manual
lever operator included.
Options for Roof Curbs, Stack Heads, Pitot Tubes and Pressure sensors avaialble

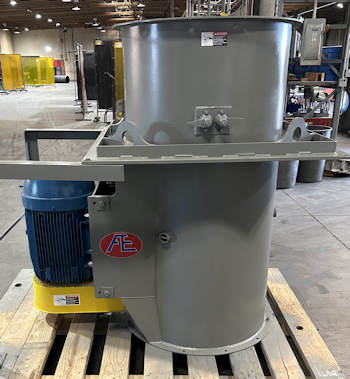

Custom High Temp Axial Exhaust Fan, AMCA Type B Spark Resistant with 40 HP Explosion Proof Motor, Windband Backdraft Damper and Special Support Hanger.
